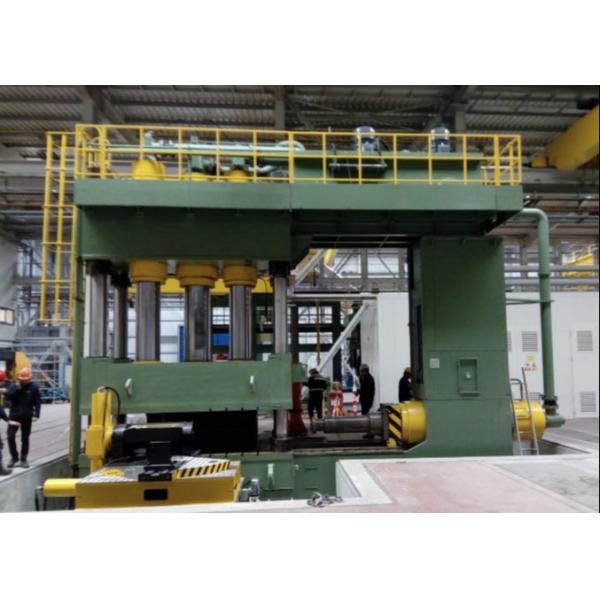

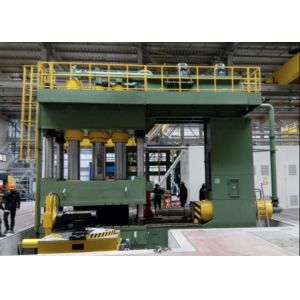

Automatic Making Touch Screen Elbow Cold Forming Machine

    Buy cheap Automatic Making Touch Screen Elbow Cold Forming Machine from wholesalers

    Buy cheap Automatic Making Touch Screen Elbow Cold Forming Machine from wholesalers
    • Buy cheap Automatic Making Touch Screen Elbow Cold Forming Machine from wholesalers

    Automatic Making Touch Screen Elbow Cold Forming Machine

    Ask Lasest Price
    Brand Name : HUAWEI
    Model Number : GIL114
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10-15 sets/ month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Automatic Making Touch Screen Elbow Cold Forming Machine

    automatic making machine elbow cold forming machine
    1.Main Features of Elbow making machines (Elbow cold forming machie):
    · 1.Elbow making machine has attained the CE and ISO certificates;
    · 2.High strength steel metal via gas shielded welding framed machine base is used on elbow making machine;
    · 3.high rigidity and load balance are the main design features of the elbow making machine in order to keep excellent accurancy;
    · 4.Elbows can be formed in one cold forming process with no needs for any calibration
    · 5.Elbow making machine has the features of energy saving, high working efficiency, less labor cost, batch production
    · 6.Elbow making machine adopts imported hydraulic system and electric appliances.

    · 7.Elbow making machie adopts PLC button centralized control, uses touch screen, applys proportional valve to regulate pressure. It can be adjusted and operated manually and automatically.


    Cold Forming Elbow Machine is different from Hot Forming Mandrel Elbow Machine . For the Cold Pushing Elbow Machine, the machine molds have two parts one is outside die which contain upper die and down die . Another part of the mold is inside mandrel or inside ball .
    2. Machine technical detail:

    Bending Radius: 1.0D & 1.5D
    Raw Material: Carbon Steel, Stainless Steel, Alloy Steel
    Applicable Standards: ASME B16.9, ASME B16.11, GB12459, JIS, DIN, GOST
    Parameter
    Model
    Processing Size
    (Inch)
    Clamping Force
    (KN)
    Pushing Force
    (KN)
    Working Pressure
    ( Mpa)
    Total Power
    (KW)
    Dimension
    (mm)
    Weight
    (T)
    YLT65A
    1/2"-21/2"
    630
    500
    25
    15
    2500*1000*3000
    5.0
    YLT100B
    1/2"-4"
    1200
    1000
    25
    18.5
    3000*1200*3300
    8.5
    YLT150B
    2"-6"
    2500

    1800

    25
    30
    4000*1600*3700
    22
    YLT200A
    4"-8"
    3150
    2000
    25
    37
    4500*1600*3800
    28
    YLT250C
    4"-10"
    3500
    2500
    25
    37
    5000*2700*4100
    35
    YLT300B
    5"-12"
    5000
    3500
    25
    45
    5900*3300*4500
    42
    YLT400A
    8"-16"
    10000
    5600
    25
    75
    8500*4500*6500
    75
    YLT500A
    12"-20"
    15000
    7500
    25
    116
    10700*4800*8000
    230
    YLT600A
    14"-24"
    20000
    10000
    25
    160
    12500*5500*9500
    280
    YLT700A
    18"-28"
    25000
    12500
    25
    200
    13000*6500*11000
    320
    YLT800A
    20"-32"
    30000
    18000
    25
    240
    17000*8000*13000
    520

    3. Company information
    Our company is manufacturer of pipe fitting machines.We have focused on fitting machine 10years.Hot forming elbow machine, cold forming elbow machine, long bend machine,cold forming tee machine, pipe expanding machine,marking machine,median frequency heating machine,reducer machine, cap machine, shot blasting machine, cutting machine, bevelling machine,hydraulic press, CNC lathe machine, drill machine, ring rolling machine.



    4. Our services:
    Prepare-sale service:1). Provide professional technical advisory services. 2). Provide inspection and reception at any time.
    In-sale service:1). Provide technical information and technical parameters of the machine. 2). Responsible for machine installation and commissioning. 3). Answer customer questions and give customers effective advices.
    After-sale service:1). Machine spares within one year free replacement and provide free technical services.



    · We also supply:

    · Tee making machine, induction elbow making machine, induction pipe bending machine, elbow beveling machine, tee beveling machine, reducer beveling machine, pipe fitting chamfering machine, bevel ends machine,elbow size die moulds and mandrils, pipe fittings.

    5. Contact:
    Darcy Dong
    Email address: guozhong_darcy@pipefittingsmachine.com
    Whatsapp/ Wechat: 008625630731167
